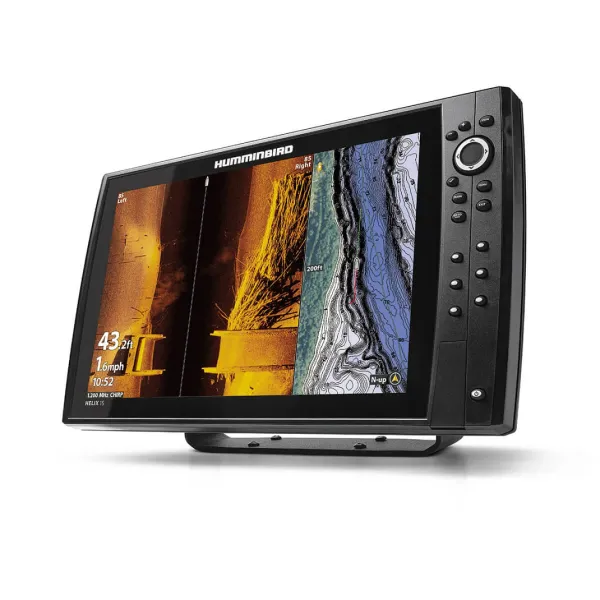

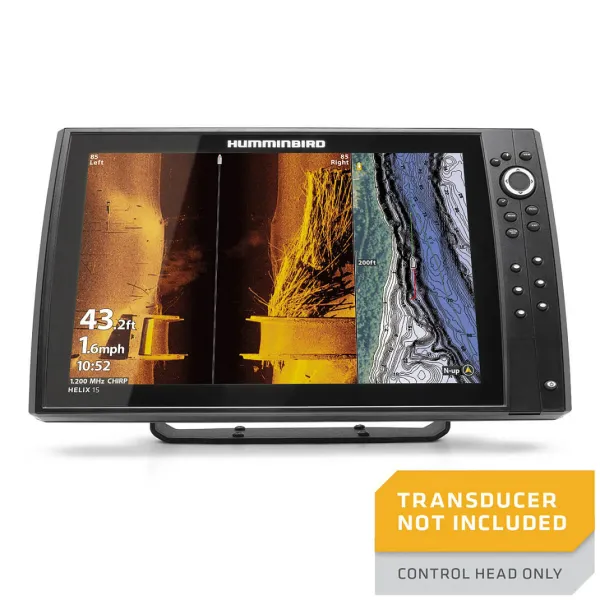

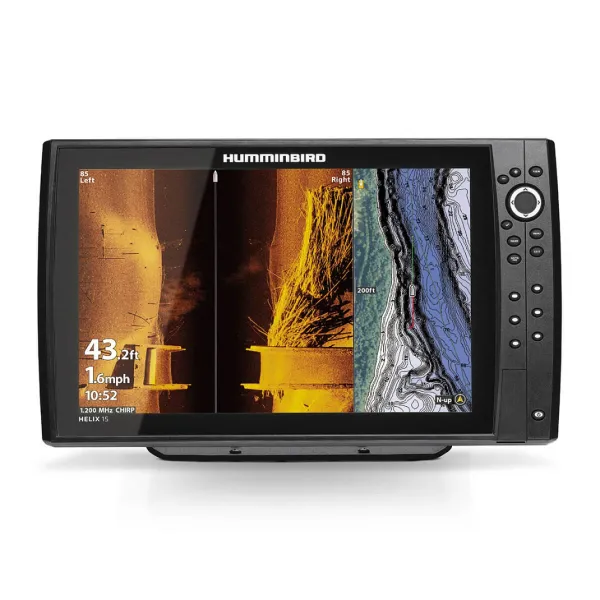

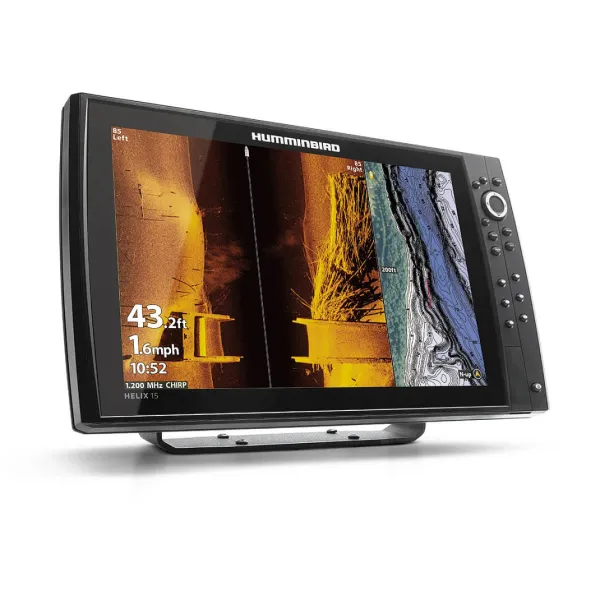

New Humminbird HELIX 15 CHIRP MEGA SI GPS G4N CHO – Sale !!

The HELIX 15 CHIRP MSI Plus GPS G4N CHO features a 15.4″ display, MEGA Side Imaging , MEGA Down Imaging , Dual Spectrum CHIRP Sonar and internal GPS with Humminbird Basemap. As with all HELIX G4N models, this HELIX 15 includes standard features such as AutoChart Live, Wi-Fi and NMEA 2000®, in addition to Bluetooth® and Ethernet networking for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon. This CHO (Control Head Only) model allows you to pick the right accessory transducer for your needs, including compatibility with Minn Kota Built-in MEGA Imaging trolling motors.

FEATURES

– Control Head Only Model: This model does not include a transducer. This CHO model is a great choice for those looking to connect to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network.

– Keypad control: Master HELIX at the touch of a button. Access the preloaded views from the user-friendly menu system, operated by soft key controls that allow you to reliably operate your fish finder in any conditions.

– MEGA Side Imaging : See the world below like never before with a crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You’ll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

– MEGA Down Imaging : Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You’ll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

– Dual Spectrum CHIRP sonar: Before you cast, know what’s down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

– Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more.

– AutoChart Live: Create real-time maps of your fishing spots. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with –  – AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.

– One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

– Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

– Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.

– NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
Includes control head, power cable, gimbal mounting bracket. This CHO model does not include a transducer, allowing you to pick the best fit for your rigging needs.

– 2-Year Limited Warranty

SPECS :

Series    HELIX
Display Size – Diagonal    15.4″
Display Pixel Matrix    1280H x 800V ft
Sonar-Standard    Dual Spectrum CHIRP, MEGA Down Imaging , MEGA Side Imaging
Sonar-Coverage    20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
Sonar-Optional    50 kHz, 50/Low Airmar CHIRP
CHIRP – Frequencies Supported    Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported    50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar    1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
CHIRP – Imaging-Frequencies Supported    455 kHz DI (435-535 kHz), 455 kHz SI (405-505 kHz), 800 kHz DI (800-860 kHz), 800 kHz SI (780-840 kHz), MEGA DI (1100-1200 kHz), MEGA SI (1050-1175 kHz)
Depth-Down Imaging    125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side)    800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA)
Interface    Keypad Control
Features    Bluetooth, Built In GPS, Built In Mapping, CHIRP Digital Sonar, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging , Networking, Side Imaging, Wi-Fi
Memory Card Slot    Dual SD
Compatible With    AIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, Radar, MEGA 360, One-Boat Network, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota US2 Sonar
Power Draw    3.5 Amps
Power Input    10.8-20 VDC
Power Output Peak-to-Peak    8000 Watts
Power Output RMS    1000 Watts
Screen Snap Shot    Included
Sonar Recording    Included

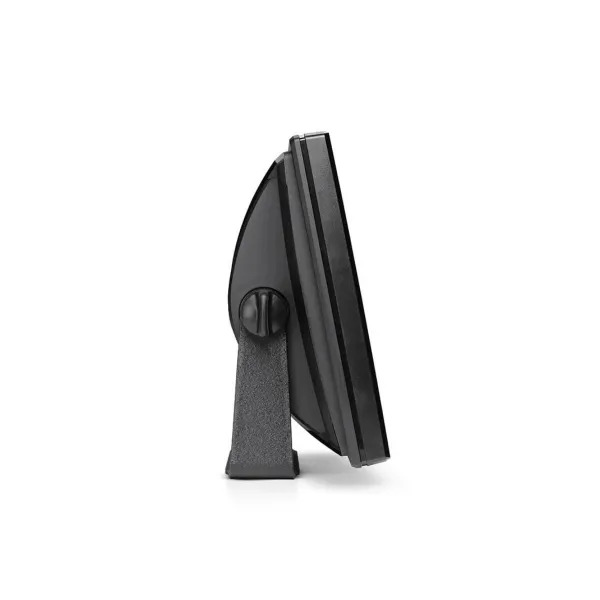

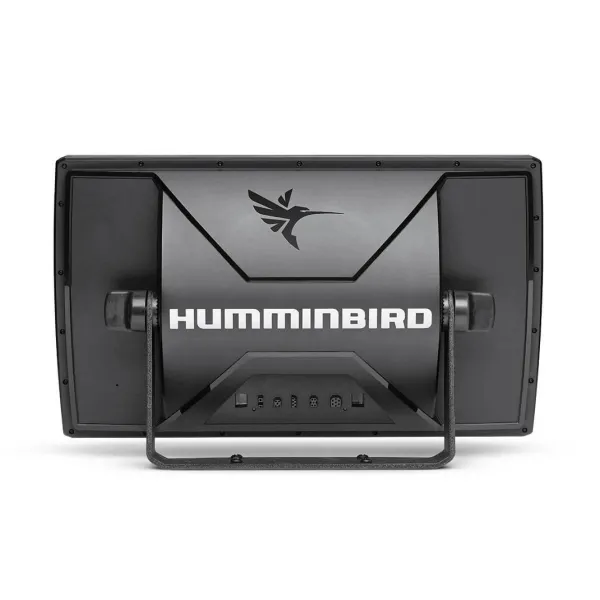

Mount-Standard    Gimbal
Mount-Standard Size    17.63” W x 10.62” H x 4.44” D
Mount-Optional Size    17.63” W x 10.35” H x 1.41” D
Transducer Mount Location    Transom
GPS Chartplotting    Included
GPS Trackplotting    Included
LakeMaster Compatibility    Yes
Coast Master Compatibility    Yes
Navionics Gold/HotMaps Compatibility    Yes
Navionics Platinum Compatibility    Yes
Platinum Compatibility    Yes
Heading Sensor GPS Compatibility    Yes
Upgradable Software    Yes
View Preset Keys    Yes
X-Press Menu System    Yes
Custom Digital Readout    Yes
Custom View Selections    No
Display Colors Grayscale    16-Bit
Display Size    11″ – 15″
Speed    Included
Temperature    Built In
Temperature Alarm    Yes
Temperature Graph    Yes
Transducer Included    XM 9 HW MSI T
HDMI Compatible    No
