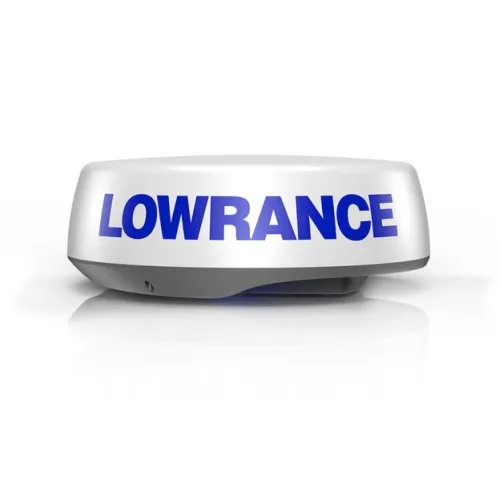

New Lowrance HALO24 Plus Radar – Sale !!

WELCOME TO HALO24

HALO24 revolutionizes radar by offering an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack Doppler technology, and enjoy simultaneous short and long-range coverage-up to 48 nautical miles-from one compact 24-inch dome antenna.

SEE NEAR AND FAR WITH ONE COMPACT DOME

Perfect for a wide range of coastal bay boats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

THE ULTIMATE VIEW FOR COLLISION AVOIDANCE

HALO24 radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance.

VELOCITYTRACK DOPPLER TECHNOLOGY BUILT-IN

VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. HALO24 radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.

READY WHEN YOU ARE

HALO24 radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO24 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO24 radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.

Key Features

48 nm range from a compact 24-inch dome
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation sees both near and far
Ultra-fast 60 RPM operation at ranges up to 1.5 nm
VelocityTrack™ Doppler technology for collision avoidance
Easy operation with harbour, offshore, weather, and bird modes
MARPA target tracking (up to 10 targets, 20 in dual range)
Ready instantly from standby

Specifications :

Ethernet Ports
100 Base T
Max Wind Speed
100 knots (51 m/s)
Min Range, scale
100 m (328 ft)
Warranty Period
2 Years
Power Consumption typical
20W
Operating Temperature Range
-25° to 55°C (-13° to 130°F)
Power Consumption max
27W
Beam width
3.9° nonminal (-3dB) 2° with target separation on high
Max Range, scale
48 NM
Recommended Fuse Rating
5A
Weight
6.75 kg (14.9 lbs) without cable
Dimensions Diameter
610mm (24″)
Dimensions H x W x D
610mm dia x 225 mm H. (24″ dia x 8.9″ H)
Supply Voltage
9 – 31.2 VDC (12/24V systems)
Humidity
95% RH at 35°C (95°F)
Approvals Compliance
FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety: China SRRC & CCS
Radar Modes
Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion
Waterproofrating
IPX6
Radar Technology
Pulse Compression
Interface
Simrad MFD
Rotation speed
Up to 60 RPM (Range Dependent)

In the box :

Cable, RJ45 To 5 Pin,1.5m
RJ45 Waterproofing Boot
5m cable for HALO Dome Radar / Nemesis
