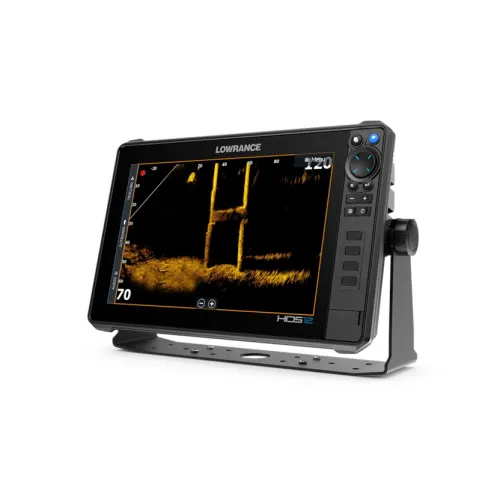

New Lowrance HDS PRO 12 with Active Imaging HD – Sale !!

Key Features

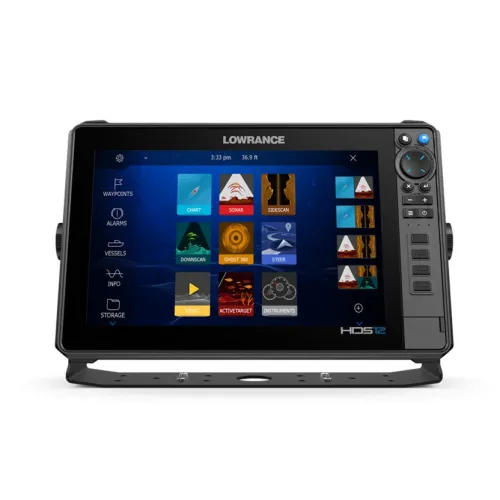

SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses
New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
New! High-resolution ActiveTarget 2 Live Sonar ready
FishReveal™ with new SideScan view, as well as Downscan*
Available in 9, 10, 12 and 16-inch display size
Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000 US Lakes, 9,400 Canadian Lakes or worldwide basemap
Real-time mapping available with C-MAP® Genesis Live.
Support for new ActiveTarget Scout and Ghost® Trolling Motor 360 chart overlay views
Large programmable keys for 10, 12 and 16-inch sizes
Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.
*SidescanFishReveal requires S3100 module and a compatible transducer

See more and catch more with the new HDS® Pro, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget® 2 Live Sonar and new, ultra high-definition Active Imaging™ HD. Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™. FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module) ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget® systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.

The better your view, the better your fishing. From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS® Pro delivers a full range of meaningful underwater views that will take your fishing experience from good to great. The SolarMAX™ HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses — a real difference maker on the water. See unmatched clarity on-screen with Lowrance’s superior, high-resolution Active Imaging™ HD sonar and ActiveTarget 2 Live Sonar technologies.

Spend more time catching fish and less time finding them with pre-loaded C-MAP® charts. Get full-featured vector charts, custom depth shading, high-res coastal coverage and 1-foot contours on more than 19,000 lakes across the U.S. and more than 9,400 in Canada. HDS® Pro also introduces a new chart overlay option, allowing you to view ActiveTarget® Scout Mode or Ghost® 360 trolling motor mode directly on the chart screen. For anglers that want to select their own chart, HDS PRO supports a wide range of third-party chart options, including C-MAP, Navionics®, Florida Marine Tracks and more.

HDS PRO gives you full bow-to-stern networking and expanded control of the Ultimate Fishing System, including new Ghost® Trolling Motor features like Ghost 360, Orbit Waypoint and Anchor at a Distance. With HDS® Pro at the heart of your fishing system, it’s easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options. HDS® PRO offers support for the complete range of top fish-finding technologies — from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Power-Pole® Anchors, Ghost® Trolling Motor and more. Expand your system — taking advantage of radar, autopilot and NMEA 2000® compatibility — and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.

The expanded options and capabilities of HDS® Pro give you more ways to customize your boat to better fit your fishing needs. Beyond the 9, 10, 12 and 16-inch screen sizes, HDS® Pro can also be expanded to deliver additional views and features. Simply add an S3100 sonar module and Active Imaging™ Transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat. Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget 2 live sonar displays at the same time. With plug-and-play installation, expanding your fishing has never been easier.

Specifications

Display
Backlight Color    Pure White LED
Display Resolution    1280 x 800
Screen Brightness    >1200 Nits
Viewing Angles    80° top/bottom, 80° left/right

Electrical
Power Consumption max    3.6A @ 13VDC with Full Backlight, Sonar on
Power Consumption min    2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical    2.3A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating    5A
Supply Voltage    12 v DC (10.8-17 V DC)

Physical
Dimensions    W x H x D 13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm)
Weight    6.5lb (2.95kg)
Compass Safe    1.6 ft (50 cm)
Mounting Type    Panel mount or bracket mount

Environment
Humidity    60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range    5°F to 131°F (-15°C to 55°C )
Shock Vibration    100,000 cycles of 20 G
Storage Temperature Range    4°F to 140°F (-20°C to 60°C )
Waterproof rating    IPX7 with card door closed

Interface
Touchscreen    Full Multi-touch touchscreen
Keypad    8-way directional keypad
User programable keys    4
Buttons    Zoom /-, Exit, Enter, Menu, Waypoint, Power / Light

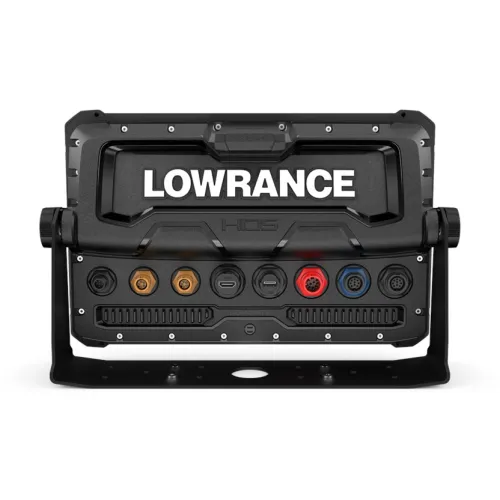

Connectivity
Bluetooth    Bluetooth® 5.2 with support for Bluetooth® classic
Ethernet Ports    2 x 100 Mbit, 6 max MFD’s on a network
Connectivity Wi Fi    Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000    1x Micro-C
SD Card Storage    via Power cable

Video
Output    None
Composite video    1 xRCA – single channel via an optional adaptor cable
HDMI    1 port for external input (HDMI® 1.4 sink and HDCP)

GPS
Correction    DGPS, WAAS
GPS Receiver Channels    16
Position Accuracy    20m RMS
Time to First Fix    30s
Update rate    10 Hz

MFD
Sonar Compatibility    Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
Radar    All HALO Radars
Weather    SiriusXM via WM-4 (USA only)
AIS    AIS Chart and Radar overlay. Target vessel details.
Autopilot    NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital Switching    CZone, Naviop, DDS
GPS    10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage    8.0 GB Internal
Multimedia    SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power    1kW
Waypoints, Routes, Tracks    3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5    Support for third part HTML apps
Autopilot Maneuvers Turn Patterns    Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes    Course, Heading, Waypoint, Power Steer

In the Box:

HDS12 Pro Display
Lowrance Power/0183 Cable
HDS-12 LIVE/PRO Bracket and Knobs
HDS-12 LIVE/PRO Suncover
DISCOVER – NORTH AMERICA

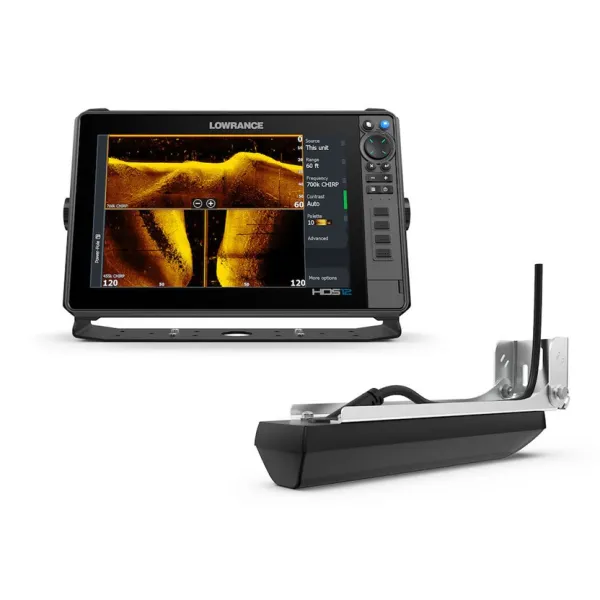

ActiveImaging™ HD 3-in-1 Transducer
