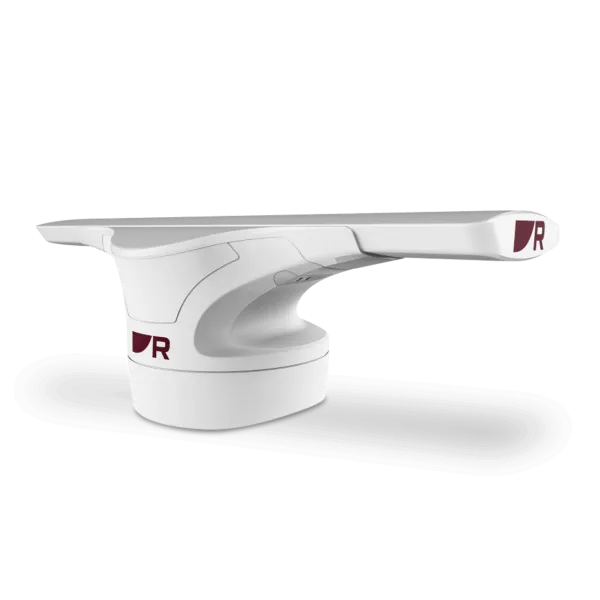

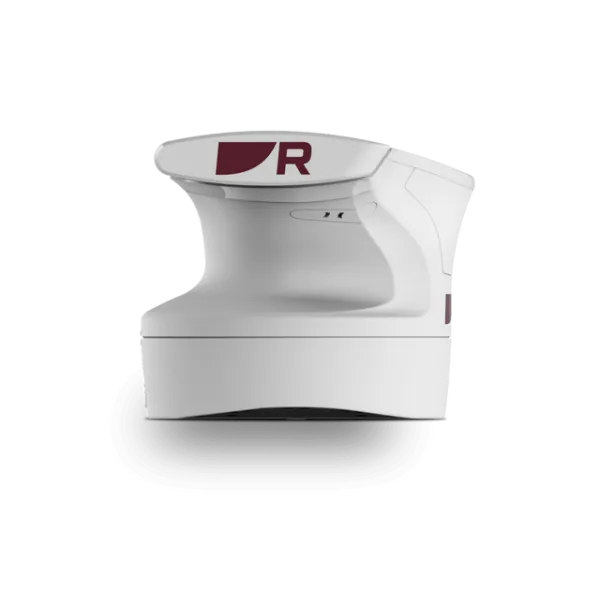

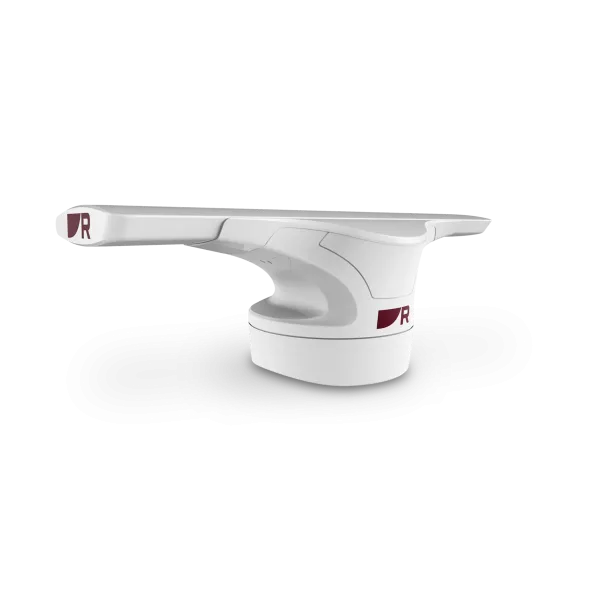

New Raymarine CYCLONE PRO 6FT Radar Pack – Sale !!

INCREASED POWER FOR SUPERIOR RANGE

With a powerful 110-watt solid-state transmitter, Cyclone Pro delivers superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology. The increased power output of Cyclone Pro is equivalent to a 12kW magnetron radar and gives Cyclone Pro a range of up to 96 nautical miles. Cyclone Pro model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.

SPECIFICATION :

GENERAL

Antenna Size
3 / 4 / 6 Foot Array

Max Range Scale
72 Nm

Rotation Speed
12 / 24 / 36 / 48 / 60 rpm

Boot Up time
40 seconds

Standby to Transmit
Less than 5 seconds

Power Connection
1x Power connector

Data Connection
1x RayNet connector

Transmitter Frequency
9370, 9400, 9430 MHz (User Selectable)

Receiver Characteristic
Linear

Receiver Noise
Less than 5 dB

POWER SPECIFICATIONS

Peak Power Output
110 W

Supply voltage (Using VCM100)
Nominal: 12 V dc or 24 V dc
Minimum: 10.2 V dc
Maximum: 31.2 V dc

Power Consumption (Typical)
95 W

Power Consumption (Max)
195 W

Power Consumption (Standby)
30 W

ANTENNA / BEAM

Beamwidth (vertical)
25°

Beamwidth (horizontal)
2.83°

Polarization
Horizontal

Length
1031 mm / 40.59 in

Weight
7 Kg / 15.4 lb

PEDESTAL

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

ENVIRONMENTAL

Waterproof Rating
IPX6

Operating Temperature Range
-25°C to 55°C (-13°F to 131°F)

Humidity
Up to 93% at 40°C (104°F)

Maximum Wind Speed
100 Kts

ARPA

Target tracking
Tracking of 100 simultaneous ARPA targets.

CONFORMANCE

Standards (Canada)
RSS138 Iss. 1, Technical Acceptance Certificate, Cyclone: IC:4069B-953LPSSR, Cyclone Pro: IC:4069B-953MPSSR

Standards (European Union & EFTA)
Radio Equipment Directive 2014/53/EU, Self-Declaration

Standards (Australia / New Zealand)
ACMA Declaration of Conformity, Compliance level 3

Standards (USA)
47CFR Part 80, Certificate of Approval, Cyclone: FCC ID: PJ5-953LPSSR, Cyclone Pro: FCC ID: PJ5-953MPSSR

RECEIVER

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

PHYSICAL (ANTENNA)

Dimensions
3 Foot Antenna Length: 1031 mm (40.5 inches)
4 Foot Antenna Length: 1336 mm (52.59 inches)
6 Foot Antenna Length: 1945mm (76.57 inches)

Weight
3 Foot Antenna Weight: 7Kg (15.43lbs)
4 Foot Antenna Weight: 9Kg (19.84lns)
6 Foot Antenna Weight: 12Kg (26.45lbs)

ANTENNA

Polarization
Horizontal

Beamwidth (vertical)
25°

Rotation speed
12 RPM / 24 RPM/ 36 RPM / 48 RPM/ 60 RPM

Beamwidth (horizontal)
3 Foot Antenna:2.83°
4 Foot Antenna:1.99°
6 Foot Antenna1.32°

TRANSMITTER

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
55 W

Peak power output
110 W

PHYSICAL (PEDESTAL)

Dimensions
388 mm x 360 mm x 335 mm (to top of antenna)

Weight
16 Kg

CONNECTIONS

Data connection
1x RayNet connector

Power connection
1x Power connector

IN THE BOX :

1 Radar pedestal
2 M10 stud x4
3 M10 nut x8
4 M10 spring washer x4
5 M10 plain washer x4
6 Cable gasket
7 Mounting template
8 Radar data cable
9 Power cable
