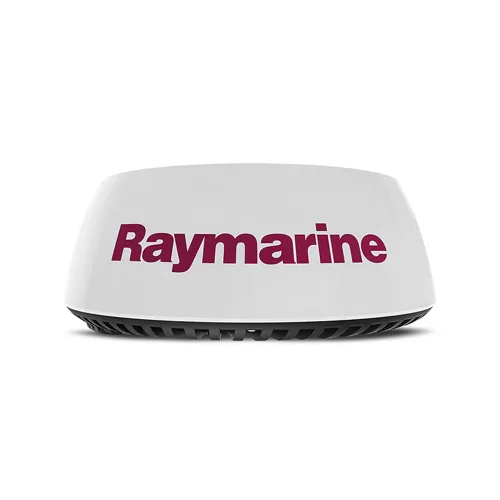

New Raymarine QUANTUM Q24C 18″ Radar – Sale !!

QUANTUM – CHIRP PULSE COMPRESSION RADAR

Exclusive Raymarine ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality

Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
CHIRP Pulse compression ensures more radar energy reaches each target, resulting in superior imaging on long ranges
Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Immediate Awareness

Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

Simplified Installation

Easy to upgrade.  The same bolt pattern as previous generation radars.
Optional Quantum adapter cable eliminates the need to run new radar cables when upgrading
Quantum’s small diameter power cable is easy to route through tight spaces
Wired or wireless. Quantum features Wi-Fi for connecting wirelessly to Raymarine chartplotter displays.

Energy Efficient and Lightweight

Weighs 50% less than traditional magnetron radars
Safe Emissions thanks to Quantum’s low power solid state radar transmitter
Very low power consumption (17 Watts transmit and 7 watts standby)
Extended vessel battery life when under sail

FEATURES

Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range

CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges

Broad usage applications, Quantum is perfect for Sailboats, RIBs, and smaller powerboats

Simplified installation and can utilize existing cables (with an adapter) if being used as an upgrade

SPECIFICATION :

GENERAL

Dimensions: Diameter | Height
541.0 mm I 209.5 mm

Weight
5.6 kg

Supply voltage
Either 12 V dc or 24 V dc nominal

Operating voltage range
Minimum: 10.8 V dc | Maximum: 31.2 V dc

Power Consumption
Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W

Waterproofing
IPX6

Operating temperature range
-10°C to 55°C

Storage temperature range
-25°C to 70°C

Additional storage conditions
Store upright; do not block vents on underside

Humidity
Up to 95% at 35°C

Maximum wind speed
100 kts

Range scales
1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles

TRANSMITTER

Type
X-band solid-state transmitter with pulse compression technology

Transmit frequency
9354 MHz to 9446 MHz

Peak power output
20W

Duplexer
Circulator

Pulse widths (3 dB)
40 ns to 14.7 us

Chirp lengths
400 ns to 22 us

Pulse repetition frequency
920 Hz to 5900 Hz

Chirp bandwidth
Up to 32 MHz

Standby mode
Scanner rotation – OFF | Scanner transmission – OFF | Wi-Fi link – ON

RECEIVER

IF frequency
26 MHz

Noise figure
Less than 4 dB

ANTENNA

Type
Patch array

Beamwidth (nominal)
Horizontal: 4.9° | Vertical: 20°

Polarization
Horizontal

Rotation speed
24 rpm nominal

TARGET TRACKING

Target tracking
Tracking of 10 simultaneous Radar targets

TRANSMITTER

Type
X-band solid-state transmitter with pulse compression technology

CHIRP bandwidth
Up to 32 MHz

Standby mode
Scanner rotation – OFF, Scanner transmission – OFF, Wi-Fi link – ON

Duplexer
Circulator

Transmit frequency
9354 MHz to 9446 MHz

Pulse repitition frequency
920 Hz to 5900 Hz

CHIRP lengths
400 ns to 22 µs

Pulse widths (3 dB)
40 ns to 14.7µs

Peak power output
20 W

ENVIRONMENTAL

Humidity
Up to 95% at 35°C

Additional storage conditions
Store upright; do not block vents on underside

Waterproof rating
IPx6

Storage temperature range
-25°C (-13° F) to 70°C (158° F)

Maximum wind speed
100 kts

Operating temperature range
-10°C (14° F) to 55°C (131° F)

Range scales
1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles

TARGET TRACKING

Target tracking
Tracking of 10 simultaneous Radar targets.

CONFORMANCE

Standards (Canada)
RSS238 Iss. 1, Technical Acceptance Certificate

Standards (European Union & EFTA)
Radio Equipment Directive 2014/53/EU, Certificate of Opinion

Standards (Australia/New Zealand)
ACMA Declaration of Conformity, Compliance level 3

Standards (USA)
47CFR FCC Part 2 & Part 80, Certificate of Approval

ANTENNA

Type
Patch Array

Beamwidth (nominal)
Horizontal: 4.9°, Vertical: 20°

Polarization
Horizontal

Rotation speed
24 rpm nominal

RECEIVER

Noise figure
Less than 4 dB

IF frequency
26 MHz

PHYSICAL

Diameter
541.0 mm (21.3 in)

Weight
5.6 kg (12.35 lbs)

Height
209.5 mm (8.25 in)

IN THE BOX :

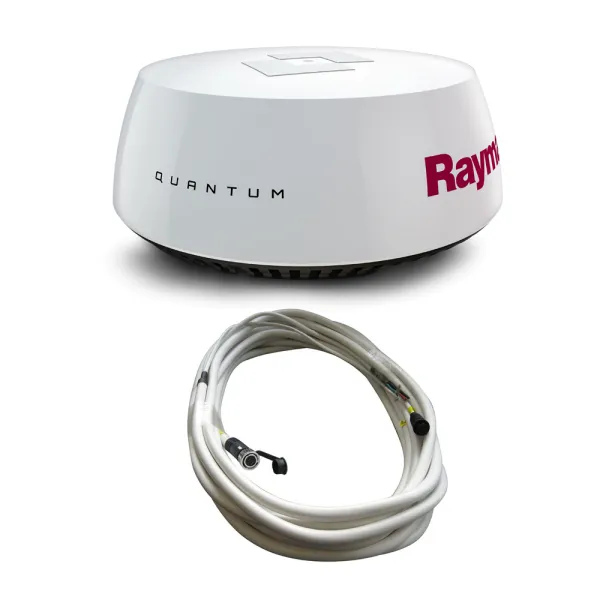

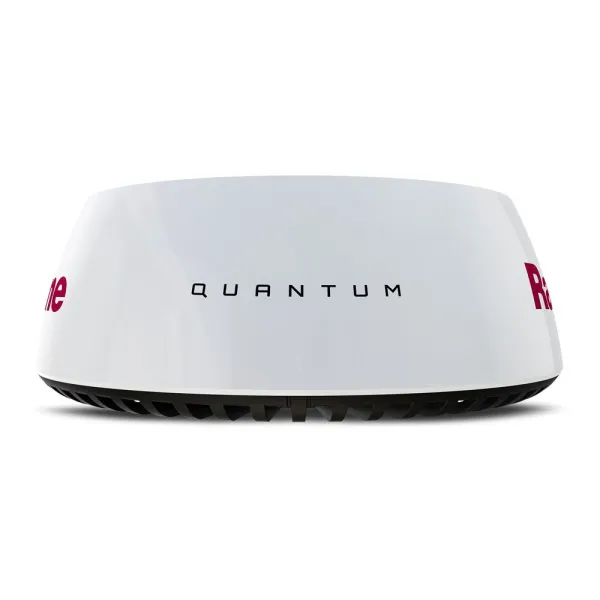

1 Quantum Radome

2 10 m (32.8 ft.) Power cable

3 M8 mounting bolts with spring washers and flat washers x4

4 Documentation
