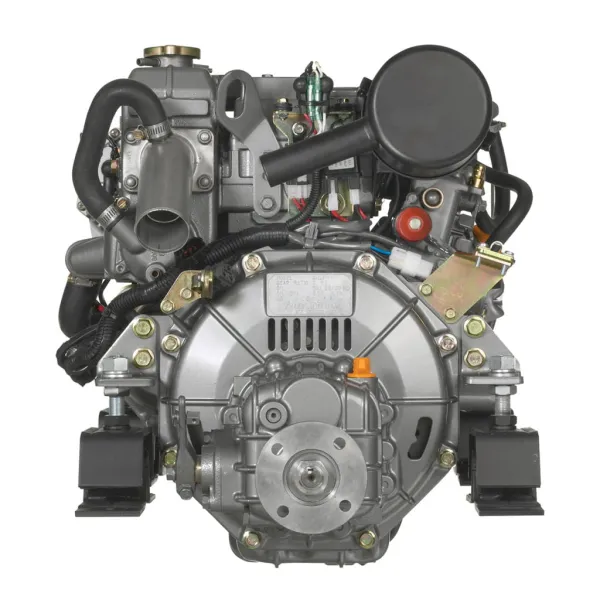

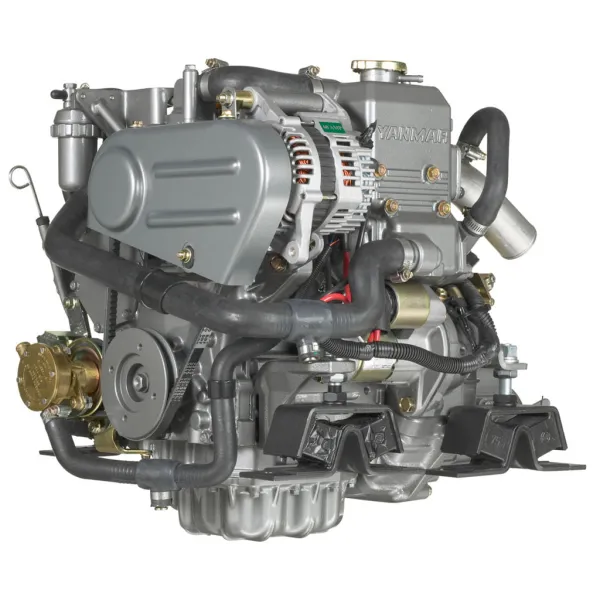

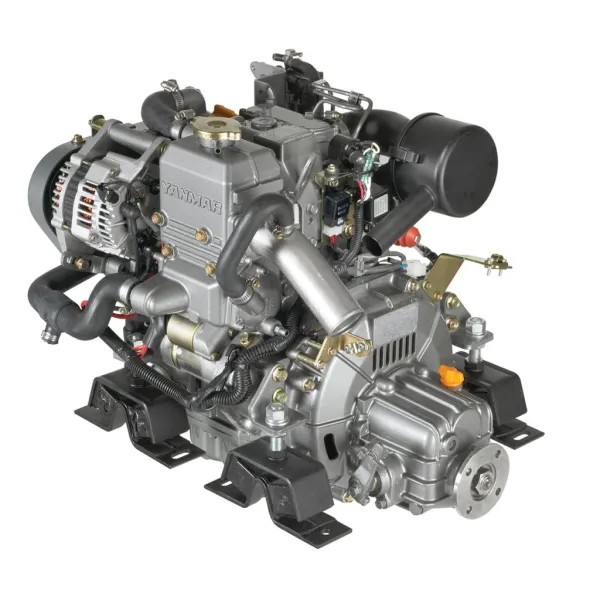

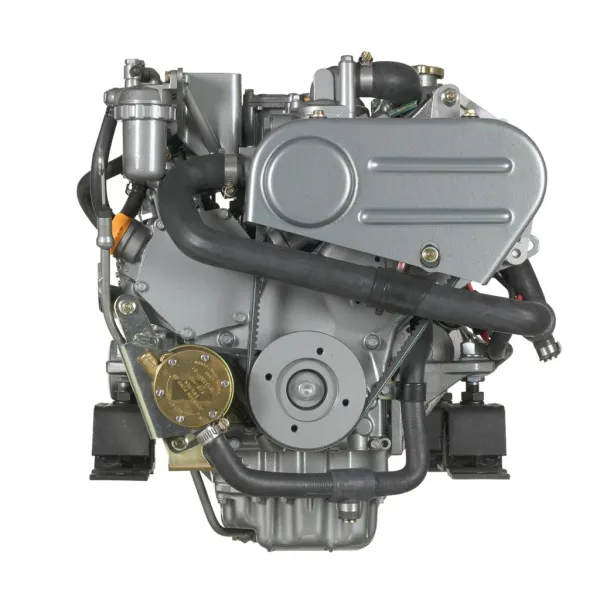

New Yanmar 2YM15 14HP Inboard Diesel Engine – Sale !!

YM Series NEW 2YM15 (14HP/10.3kW) The all-new big displacement two-cylinders diesels from Yanmar gives you the easiest start, provides more power and produces outstanding torque at low engine speeds. It is even quiter with smoke virtually eliminated. Clean running, smooth and its outstanding size, power-to-weight benefits makes it suitable for double installation.

Specifications

Rated Output
10 kW / 14 mhp
Rated Speed
3600 rpm
Displacement
0.57 L / 34.7 cu. in
No. of cylinders
2 cylinders
Cylinder Bore x Stroke
70 mm x 74 mm / 2.75 in x 2.91 in
Combustion system
Indirect Injection, In-line Pump
Aspiration
Natural
Alternator
12V – 125A
Dry weight without gear
103 kg / 227 lbs
Dimensions
613 mm x 463 mm x 600 mm
Controls
Mechanical
Certifications
RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC

NOTE:

1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM2P-1 marine gear & height includes U-type elbow
(Dimensions may vary with other gears/elbow)

Standard Engine Package

Exhaust mixing elbow [L-type] Alternator 12V – 125A
B20 panel
Flexible mounts
Expansion tank for fresh water cooling system
Electric stop solenoid
Belt safety cover

Optional Accessories

High-riser mixing elbow [instead of L-elbow] Extension wire harness [4m, 6m] Dual harness [for 2nd station] TFX Sidemount control head
Hot water kit with cocks
Extension saildrive leg [50 mm] Propeller cone nut kit SD25
On-board spare parts kit
