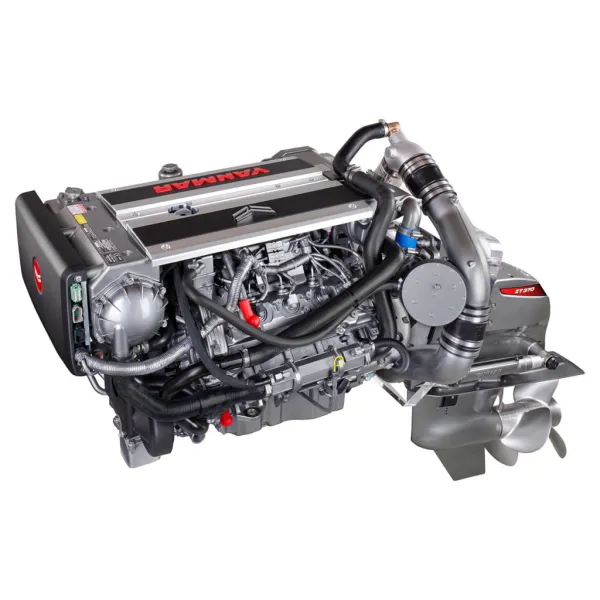

New Yanmar 8LV320 (Z) 320HP Inboard Diesel Engine – Sale !!

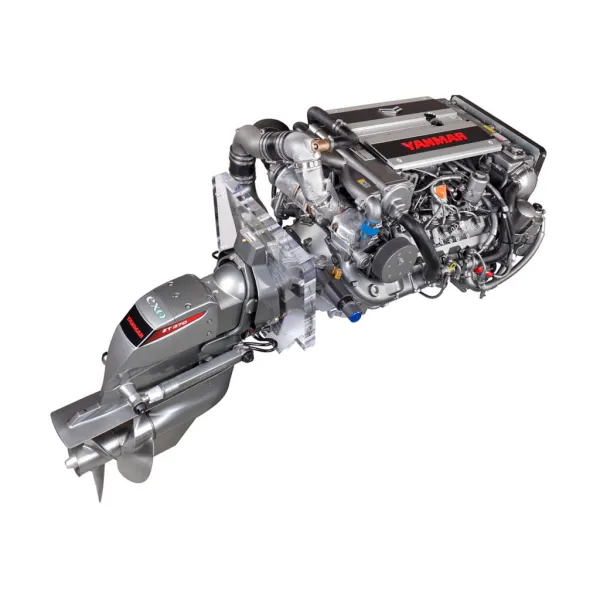

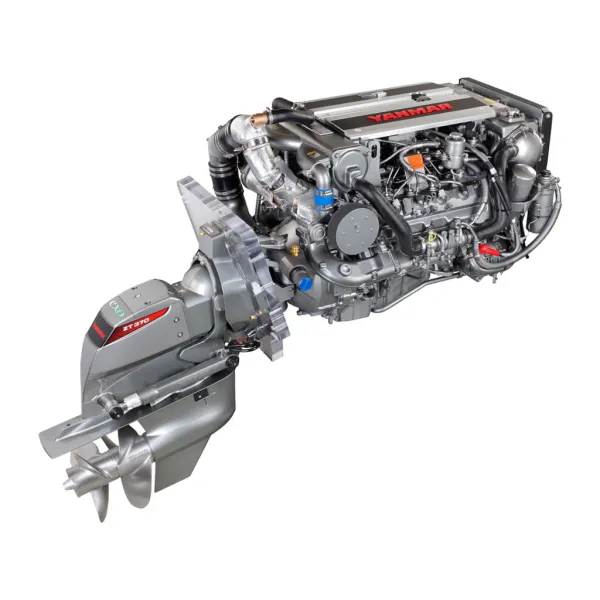

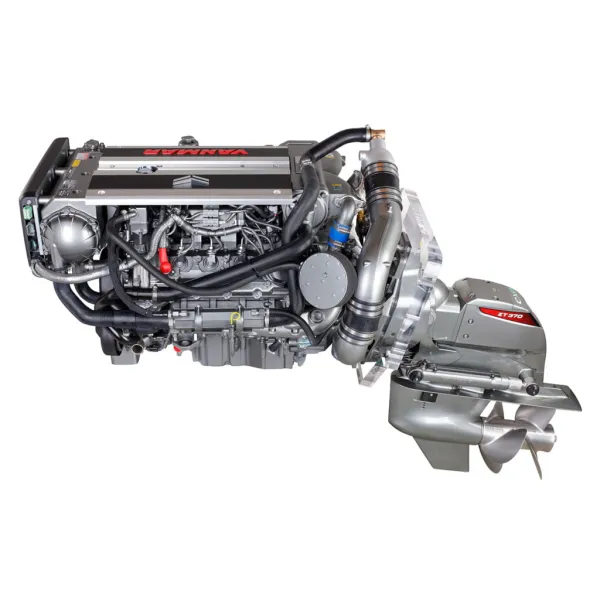

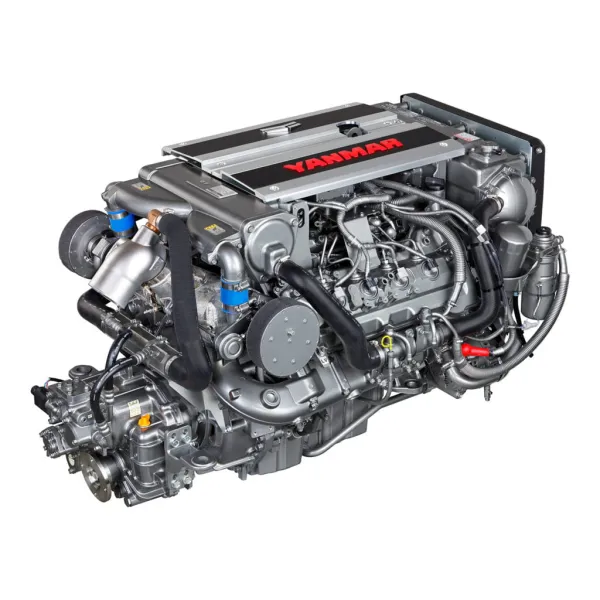

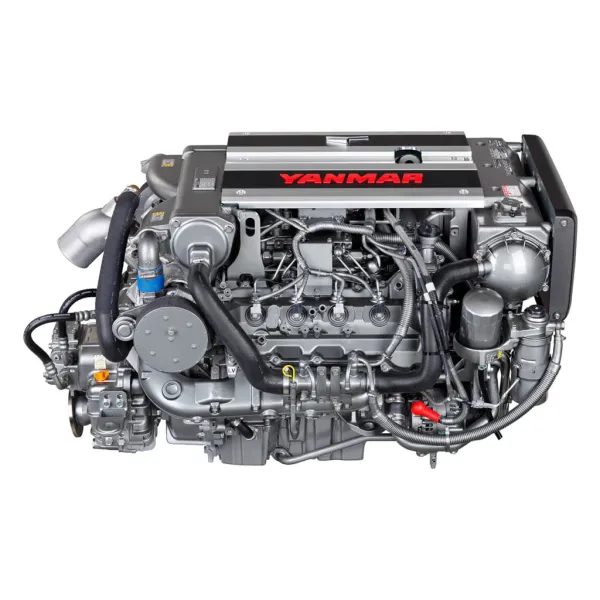

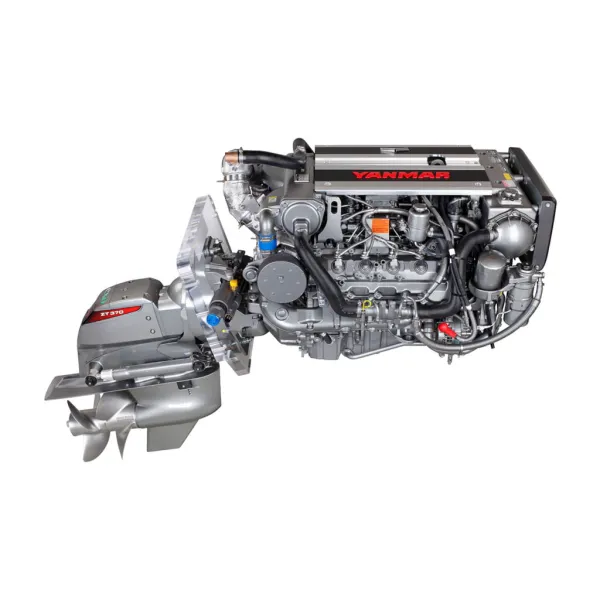

For ski boats to fast sports craft to luxury cruisers – new build or repowering – the 8LV is at the forefront of today’s propulsion technology, providing the kind of high end performance associated with V8 gasolene engines, but with all of the solid, long-life and cost-effective benefi ts of diesel. This V8 can be matched perfectly with Yanmar’s latest twin-propeller sterndrive, the ZT370, or to a KMH50 inboard transmission. Yanmar remains dedicated to achieving maximum performance from minimum weight and the 8LV proves the point: another big displacement engine, weighing in dry at a mere 435 kilograms.

The 8LV provides boaters with the best-in-class power band. It idles at 550 rpm, capable of crawling speed in the marina, aided further by the hydraulic clutch of the ZT370 or KMH50 drive systems. Maximum engine speed is a big 3,800 rpm – well ahead of other engines in this segment. You can enjoy high power, high torque. Low noise, low vibration. You can go much further on a tank of fuel. There is the advantage of a 12 volt, 180 amp alternator to charge all your onboard electrics. The 8LV uses Yanmar’s new CAN-bus control system, the Yanmar VCS, so you don’t have to rely on anyone else. Then there is easy installation, simple servicing, and all that worlwide Yanmar support, wherever, whenever.

Specifications

Rated Output
235 kW / 320 mhp
Rated Speed
3800 rpm
Displacement
4.46 L / 272 cu. in
No. of cylinders
8 cylinders
Cylinder Bore x Stroke
86 mm x 96 mm / 3.38 in x 3.78 in
Combustion system
Direct Injection, Denso Common Rail System
Aspiration
Twin Turbocharged & Intercooled
Alternator
12V – 180A
Dry weight without gear
435 kg / 959 lbs
Dimensions
1340 mm x 880 mm x 766 mm
Controls
Electronic
Certifications
RCD 2 IMO Tier 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS

NOTE:

1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Dimensions includes KMH50A gearbox with standard mixing elbow
Measured with through drive exhaust, without sterndrive (1043mm x 886mm x 1198mm)
(Dimensions may vary with other gears/elbow)

Standard Engine Package

Exhaust mixing elbow [L-type]*
Through drive exhaust**
Alternator 12V – 180A
VC10 Vessel Control System
Power steering**
Flexible mounts
Fresh water expansion tank
Opposite dipstick

*Inboard model
**Sterndrive model

Optional Accessories

High-riser mixing elbow [instead of L-elbow]*
Through hull exhaust**
Extension harness [3m, 5m, 10m] Second station
JC20 Inboard Joystick*
JC10 Sterndrive Joystick**
NMEA2000 Engine monitoring system
SOLAS including Certificate [factory fit only] Hot water connection
Water separator
Front PTO pully [V-belt type A or B] Power steering pump*
Power steering cooler*
Electric shift**
Exhaust cooling water bypass
Lube oil drain pump
Bilge pump [12V]
