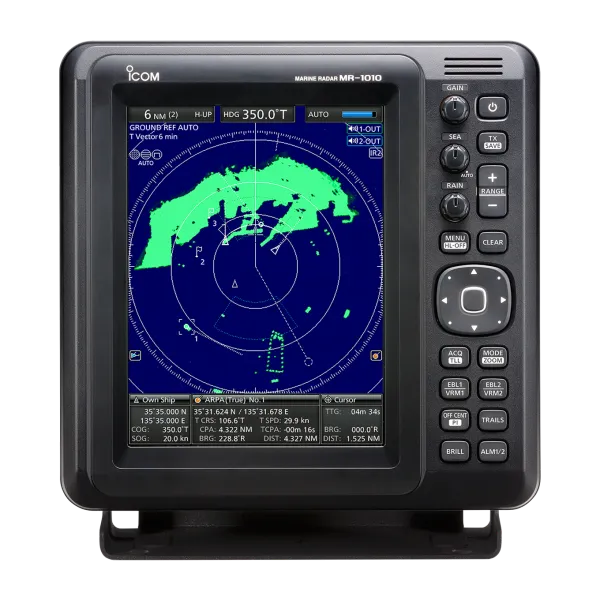

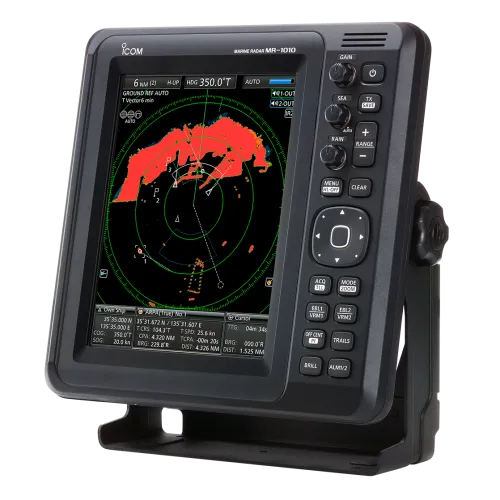

New ICOM MR-1010RII Marine Radar – Sale !!

The simplified ARPA function helps to prevent a collision risk with other vessels or objects. Up to five targets can be automatically tracked on the radar echo, when a target enters within the set watch area, (or up to ten targets can be tracked when manually set). By selecting one of the targets, the target information such as position, course, speed, CPA, TCPA, bearing, and distance is shown on the lower side of the display. When the target enters within the CPA and TCPA limits, an alarm message is displayed with a beep alarm.

DSC (Digital Selective Calling) Information Function*
When connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Up to 20 DSC messages can be plotted on the radar echo. If a MOB position information is transmitted from a DSC handheld transceiver (including Icom IC-M94D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation.

AIS (Automatic Identification System) Overlay Function*
When connected to an external AIS device (including Icom IC-M605, IC-M510 AIS and, IC-M506 AIS), up to 100 AIS target icons are overlaid on the radar echo. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing and distance are shown on the lower side of the display.

Wide Viewing Angle Color TFT LCD
The wide viewing angle color TFT LCD offers bright, vivid echoes with 16 steps gradient intensity. The screen intensity and screen color (day, night and user settings) can be instantly adjusted with the “BRILL” button. In addition, the auto hide information function enlarges radar echoes to full size.

Multi-Lingual Intuitive User Interface
The language setting of the MR-1010RII is selectable from multiple languages.* The large eight-direction cursor key provides smooth operation even when wearing gloves. Various settings can be configured through visually intuitive operation.

Optional Video Output Unit
With an optional video output unit, UX-252*, the MR-1010RII can be connected to an external display. Same radar echoes can be observed on the main unit and external display at the same time.

TLL (Target Latitude Longitude) Function*
The MR-1010RII can mark points with icons and transfer the position data with NMEA TLL sentences to other NMEA 0183 devices such as an external plotter.

True Trail Function*
The true trail function cancels own ship movement and shows true moving objects with trails, while static objects are not trailed.
* External bearing and position data required.

SPECS :

Display Unit
Display type    10.4-inch Color TFT LCD
Resolution    480 × 640 dots
Minimum range    25 m; 82 ft (at 1⁄8 NM range)
Maximum range    36 NM
Range scales    NM    1⁄8, 1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4,
6, 8, 12, 16, 24, 32, 36
km    1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4,
6, 8, 12, 16, 24, 32, 36, 48
Preheat time    90 seconds
Power supply    10.2–42 V DC
Power consumption
(at zero wind velocity)    55 W (approximately)
Usable temperature range    −15°C to 55°C; 5°F to 131°F
Input data format    NMEA 0183, N 1, AUX, IEC61162-2
Output data format    NMEA 0183

Scanner Unit
Type    60 cm; 2 ft radome scanner
Rotation speed    24, 36 rpm typ.
Horizontal beamwidth    4° typ.
Vertical beamwidth    22° typ.
Sidelobe    −22 dB typ.
Usable temperature range    −25°C to 70°C; −13°F to 158°F
Usable humidity range    Less than 95% (at 40°C; 104°F)
Frequency    9410 MHz ±30 MHz
Modulation    P0N
Peak output power    4 kW
Pulse-width/repetition rate    80 ns/2160 Hz, 80 ns/1440 Hz,
250 ns/1440 Hz, 350 ns/1440 Hz,
900 ns/720 Hz
Modulator    FET switching
Intermediate frequency    60 MHz (EUR Version), 250 MHz (EXP Version)
IF bandwidth    10 MHz / 3 MHz (EUR Version), 15 MHz / 3 MHz (EXP Version)
Tuning    Auto/manual selectable
Supplied system cable    15 m; 49.2 ft (OPC-2341)

Applicable IP Rating
Ingress Protection Standard
Display unit    IPX4 (Water resistance)
Scanner unit    IPX6 (Powerful jet water protection)
All stated specifications are subject to change without notice or obligation.

Supplied Accessories

Scanner unit
System cable (15 m)
