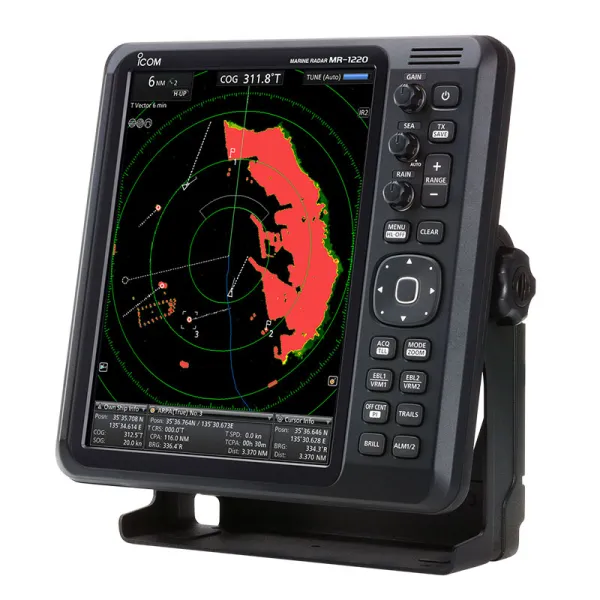

New ICOM MR-1220 Marine Radar – Sale !!
Original price was: $1,250.00.$1,125.00Current price is: $1,125.00.
You can avoid your vessel colliding with other vessels or objects by using the simpler ARPA function *1 *2. A target is automatically tracked on the radar echo when it reaches the designated watch region. The target details, including position, course, speed, CPA (Closest Point of Approach), TCPA (Time to CPA), bearing, and distance, are shown when a target is selected. An alarm alerts you when a target enters the CPA or surpasses the TCPA.
Simplified Automatic Radar Plotting Aids (ARPA) Function
The simplified ARPA function*1 *2 assists you to prevent your vessel from colliding with other vessels or objects. When a target enters the preset watch area, it is automatically tracked on the radar echo. By selecting one of the targets, the target information, such as position, course, speed, CPA (Closest Point of Approach), TCPA (Time to CPA), bearing, and distance is displayed. When a target enters the CPA, or it exceeds the set TCPA, an alarm sounds to warn you.
Digital Selective Calling (DSC) Information Display function
When connected to a DSC radio and a DSC call is received, the received message is displayed on the MR-1220*1. The function shows the DSC message, and the location where the DSC call is transmitted. Up to 20 DSC messages can be plotted. A Man Overboard waypoint can also be displayed.
Automatic Identification System (AIS) Overlay Function
When connected to an external AIS device (including Icom IC-M605 and IC-M506 AIS), up to 100 AIS target icons are overlaid on the radar echo*1. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing, and distance is displayed.
External Buzzer Connection
The MR-1220 has an external buzzer terminal on the rear panel. You can sound an alarm beeper to effectively inform of danger, when a target enters the CPA or it exceeds the TCPA*3.
Plot Function
The Plot function*1 records your vessel’s longitude and latitude at the set time interval, and displays your track on the radar echo.
3D Display Function
The MR-1220 provides an intuitive bird’s-eye view. You can change the display angle according to your own preference. The 2D view can be displayed at the same time.
Multi-Lingual User Interface
You can select the display language from English, Indonesian, Korean, Malay, Rus s ian, Spanish, Thai, and Vietnamese.
Optional Video Output Unit
With the optional UX-234 video output unit, the MR-1220 can be connected to an external display. The same radar echoes can be displayed on the main and secondary displays at the same time.
Other Features
- Target Latitude Longitude (TLL) function*1
- True Trail function*1
- Two user programmable alarm zones
- Waypoint indication
- Power Save function ….and more
SPECS :
Display Unit
| DISPLAY UNIT | MR-1220R4 | MR-1220T4 | MR-1220T6 | MR-1220T6L |
|---|---|---|---|---|
| Display | 12.1-inch color TFT LCD | |||
| Resolution (H × V) | 600 × 800 dots | |||
| Minimum range | 25 m; 82 ft (at 1/8 NM range) | |||
| Maximum range | 36 NM | 48 NM | 72 NM | 72 NM |
| Power supply requirement | 12/24 V DC | |||
| Dimensions (W × H × D; projections not included) | 301 × 323.5 × 119.2 mm | |||
| Weight (approx.) | 4.8 kg | |||
| Usable temperature range | −15 °C to 55 °C | |||
| Power consumption (approx.) | 60 W | 70 W | 80 W | 90 W |
| Available scanner unit | 2 ft (60 cm) radome | 4 ft (120 cm) open array | 4 ft (120 cm) open array | 6.5 ft (200 cm) open array |
Scanner Unit
| SCANNER UNIT | SC-R40 (MR-1220R4) |
SC-T40 (MR-1220T4) |
SC-T60 (MR-1220T6) |
SC-T60L (MR-1220T6L) |
|
|---|---|---|---|---|---|
| Type | 2 ft (60cm) radome | 4 ft (120 cm) open array | 4 ft (120 cm) open array | 6.5 ft (200 cm) open array | |
| Peak output power | 4 kW | 4 kW | 6 kW | ||
| Rotation speed | 24, 36 rpm typical | 24, 36 rpm typical | 22, 24, 36 rpm typical | ||
| Beamwidth | Horizontal | 4° typical | 2° typical | 2° typical | 1.2° typical |
| Vertical | 22° typical | 23° typical | 23° typical | 23° typical | |
| Sidelobe | −22 dB typical | −24 dB typical | −24 dB typical | −27 dB typical | |
| Transmission frequency | 9410 MHz ±30 MHz | 9410 MHz ±30 MHz | 9410 MHz ±30 MHz | ||
| Dimensions (W × H × D; projections not included) | 640 × 256 × 640 mm | 1217 (dia.) × 395 (H) mm | 1217 (dia.) × 395 (H) mm | 1995 (dia.) ×395 (H) mm | |
| Weight (approx.) | 8 kg | 18 kg | 18 kg | 20 kg | |
| Usable temperature range | –25 °C to 70 °C | –25 °C to 70 °C | –25 °C to 70 °C | ||
| Connection cable | 15 m (OPC-2341) |
20 m (OPC-2342) |
20 m (OPC-2342) |
||
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Display unit | IPX4 (Water resistance) |
| Scanner unit | IPX6 (Powerful jet water protection) |
